Gas Detection & Analysis

Multi Gas Analyser UP8000

Specialist Gas Anayser with the capability to detect up to 1-9 gases, dust (Particulate Matter), humidity, dew point and temperature simultaneously.

Provide a list of the gases to be detected and the required measuring range, and we can bespoke an analyser for your specialist requirements.

Applications Include: -

Internal Air Quality Assessments, Environmental Monitoring.

It can integrate electrochemistry, catalysis, thermal conductivity, infrared, lightion, ultraviolet and other detection principles, focusing on the accuracy of gas detection and user experience.

Supplied with an analyser tube / probe attachment, to test containers, rooms or equipment from the safety of being outside.

Gas options include CH2O – Formaldehyde, CL2 – Chlorine, Co2 – Carbon Dioxide, CO – Carbon Monoxide, H2 – Hydrogen, H2S - Hydrogen Sulfide, NH3 - Ammonia (ammonium hydroxide), N2 – Nitrogen, NO – Nitric Oxide, NO2 – Nitrogen, Dioxide, NOX – Nitrogen Oxides, O3 – Ozone, SO2 – Sulphur Dioxide, VOC – Volatile Organic Compound – many others available.

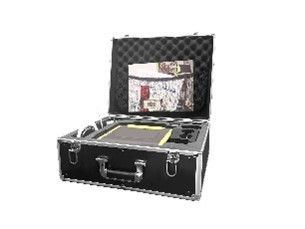

Multi Gas Analyser

• Accurate & Reliable.
• Multi-Function Display Mode.
• Comprehensive Functions.
• Data Logging.
• Mobile Charging & Long Battery Life.
• Robust Casing for Site Work. (Aviation Quality)
• Up to 18 Gases Detected Simultaneously. (Special)
• 3.5-inch Colour LCD display.
• Built-in pump gas sampling with rapid response.
• Equipped with multi-layer filtering, protect sensor from oil, water vapour, dust.
• 32G SD memory card to store and export data.
• Alarm Mode. (Buzzer, red LED)
• Support wireless communication (Optional)
• Optional built-in printer.
• Screen Shot Image.

Contact Us with Your Analyser Option

• What gas type?
• What measuring range is required?
• How many gases? – up to 9.
• Specialist model can operate up to 18 gases simultaneously.
• Do you require Particulate Matter sensor?
• Do you require Humidity, Temperature, Dew Point sensor?
• Temperature, Humidity and Pressure simultaneous operation available.
• Choice with or without a printer.
• Wireless communication option. (Sim)
• Optional Bluetooth – printing etc.

Optional Accessories Include: -

• Replacement filters.
• SA High-Temperature probe (SA) 100 ℃.
• SB High-Temperature probe 600 ℃.
• SC High- Temperature probe 1200℃.
• Drying cylinder-to lower down the humidity. For application in high humidity / temperature.
• Filter for dust and vapor.

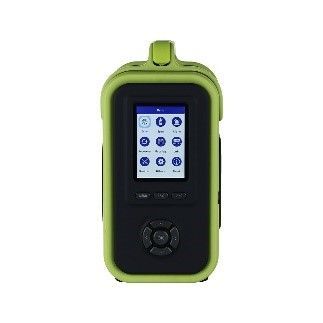

Handheld Gas Detector

UP2000 is a multi-gas and particle counter with flexible configuration of various sensors.

It can be equipped with 1-4 gas sensors plus 1 dust sensor, temperature & humidity.

There are two detection modes for dust, one is the weight mode and the other is particle count mode which can be switched arbitrarily.

PM0.3, PM0.5, PM1.0, PM2.5, PM5.0, PM10.0 can be detected at the same time to meet a variety of detection needs.

Product Overview

• Displayed in PPM or mg/m3 – easily switchable.
• Gas Detected Include: O2, N2, Co2, VOC, CH2O, O3, CO, No2 and many others.
• Pumping suction flow rate of 1L/Min. (10 levels)
• 10s response time.
• Alarm Mode.
• Switchable between gases.
• With Self-calibration and zero calibration functions, more accurate and reliable.
• LCD dot matrix display.
• Dimensions 205mm x 75mm x 32mm.
• IP66 rated. 300g in weight
• Operating time of 100 hours. (With pump off)
• Detection principle of Electrochemistry, infrared ray, catalytic combustion, PID photo ionisation. (Relative to the gas option selected)
• Specialist engineered high impact casing.
• Explosive proof. (Certificate ExicllCT3Gc)
• USB cable for dada download.


Contact Us with Your Analyser Option

• What gas type?
• What measuring range is required?
• How many gases? – up to 4.
• Do you require Particulate Matter sensor? (0.3, 0.5, 1.0, 2.5, 5.0, 10.0.
• Do you require Humidity, Temperature, Dew Point sensor?
• Optional Signal Output via USB.
• One button factory reset option available.

Optional Accessories Include: -

• SA High-Temperature probe (SA) 100 ℃.
• SB High-Temperature probe 600 ℃.
• SC High- Temperature probe 1200℃.
• Drying cylinder-to lower down the humidity. For application in high humidity / temperature.
• Filter for dust and vapor
