Bubble Fish - Disinfecting Spray Robot

Where can the Bubble Fish Disinfecting Spray Robot be used?

The Bubble Fish Robot is designed for internal use in high traffic areas such as Airports, Train Stations, Exhibition Halls, Receptions, Healthcare Corridors, Larger Foyers and Gymnasiums.

The automated Robot unit can be easily programmed to map complex buildings with corridors, doorways and obstructions whilst providing high precision cleaning of all surfaces.

Effective 99.99% Sterilisation rate

In the wake of the global pandemic, hygiene and cleanliness of public access areas is high on the agenda. Implementing the bubblefish disinfecting unit will help improve the confidence of the general public and employees whilst providing an environment that is hygienic and clean to use throughout the day and night.

Advantages of the Bubble Fish Disinfectant Spray Robot

Autonomous Navigation System:

The Bubble-Fish disinfection robot has a sophisticated autonomous navigation system that is extremely user friendly and can be set up within any building in minutes.

Easy to use:

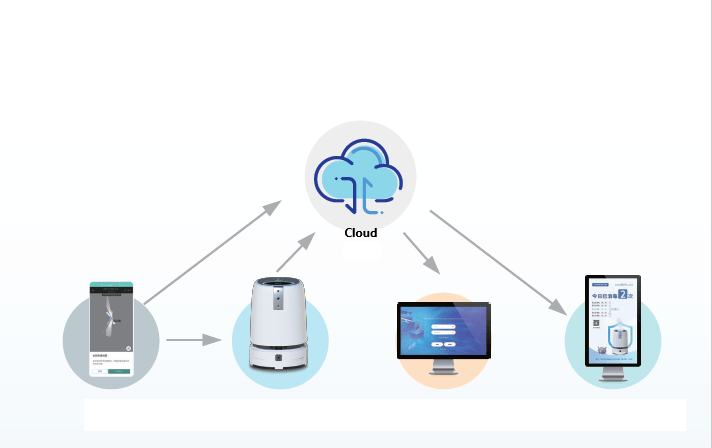

The robot is controlled in three ways:

App control.
Button panel control.
Timed automatic start and stop.

The set up will give operator management, up to date performance information and route control.

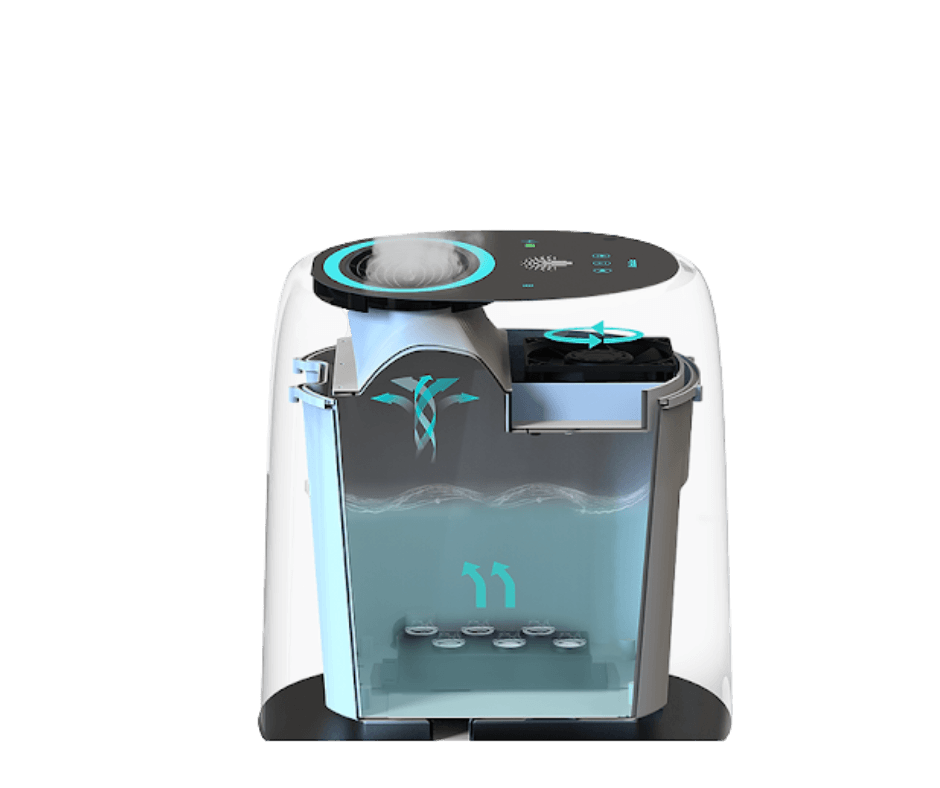

How does the Bubble Fish Robot Sterilise and clean?

The Bubble Fish Robot provides Effective and Efficient Spraying and cleaning thanks to:

12 litre Tank Volume
2.6 litre per hour spraying efficiency
Adjustable Spray efficiency
Automatic spray cut-off when solution is low
Set point spray efficiency for control
360° full coverage, with no dead spots
99.99% sterilisation rate reach to all required areas

Bubble Fish Control Panel: What's Included

Visual Obstacle Avoidance
LIDAR Sensor
Vision Sensor
Collision Sensor
Child Lock Switch
Pause / Start
Fog Amount
Fog Outlet
Status Light
Power Status
Returning for Charging

Bubble Fish Spray Disinfection Robot

High-tech Automatic Disinfection, Multi-scene Applicable

Where can the Disinfectant Spray Robot be used?

Schools
Nursing Homes
Healthcare
Offices
Gymnasiums
Retail
Hotels

Conference halls
Exhibition Centres
Function Rooms
Airports
Train Stations
Shopping Centres
Cleaning Companies

Bubble Fish Features
- Indoor autonomous positioning, navigation and mechatronics
- Automatic solution release only when pre-programmed position is reached.
- Obstacle avoidance.
- Scheduled setting.
- Automatic charging when battery is low including auto return & leave.
- Can work 24 hours.
- 2–3-hour recharge time.
- Disinfection log recorder.
- Disinfectant solution adjuster.
- Automatic spray shut-off when the solution is low.
- Soft and hard integrated general sports chassis.
- Remote control.
- Disinfection data collection.
- Sensor control closed-loop management.
Bubble Fish Specifications
- Dimensions: 407 x 421 x 745mm
- Machine Weight: 23kg (without disinfectant)
- Tank Volume: 12 litres
- Spray Amount: 2.6 litres per hour – adjustable.
- Applicable Disinfectant: Hypochlorous acid, chlorine dioxide, Hydrogen peroxide, etc.
- Operation Method: App control, Panel control, Timer (auto)
- Endurance time: Up to 2 hrs (then recharge required)
- Charging Time: 2 - 3hrs
- Pass-ability: Width is 600mm, Slope Gradient at 5 °, Obstacle passing ability at 10mm.
- Communication method: WiFi+4G
- Running Speed: 0.3 m/s
- Safety Protection: Lidar and various sensors, voice/light reminder, collision perception.
- Charging pile Support: 110V～240V wide voltage input. Rated output: voltage 29.4V, current 5.0A
- Safety protection: Water shortage alarm
- Noise: 50dba
- Working temperature: 0° to 50°C

Book Your Demonstration

Our expert advice, site surveys and demonstrations are available to book nationwide.

Contact Us
