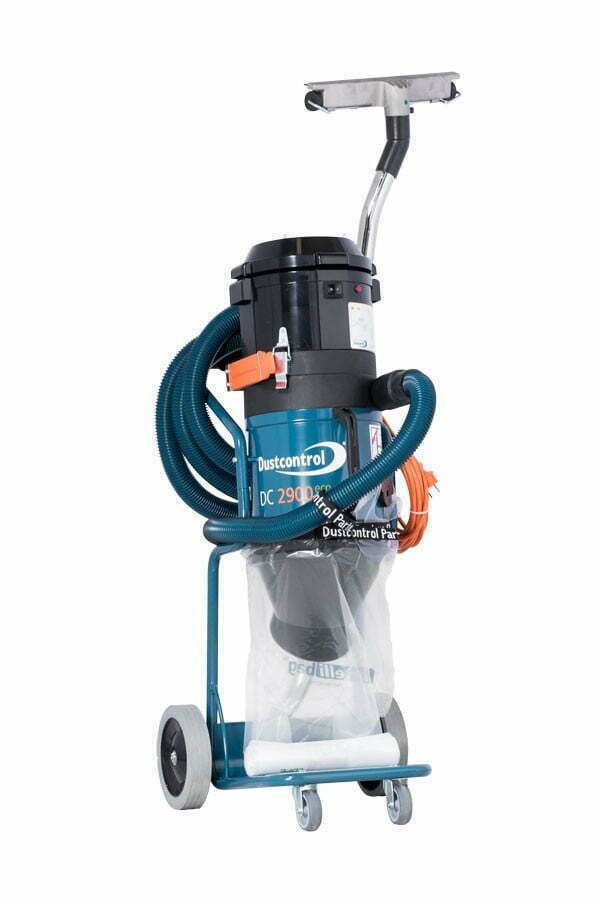

DC2900H Dust Extractor for On-Too, On-Machinery and on the floor
(120103) 230v auto start version. POA (Price on Request)
- Dustcontrol’s most popular dust extractor – suitable for vacuum cleaning and source extraction from handheld power tools (with up to 5” suction casings) and small table saws.
- Sturdy steel chassis with big wheels, but still lightweight and portable.
Description
The DC 2900 is our most popular dust extractor. It is suitable for vacuum cleaning and source extraction from handheld power tools (with up to 5” suction casings) and small table saws.
The DC 2900 has a sturdy steel chassis with big wheels, but is still lightweight and portable. The DC 2900 can be ordered with a plastic bag (DC 2900 c), Longopac (DC 2900 L) or with a steel container (DC 2900 H a).
DC 2900 c Autostart: Connect the subject electric tool to the electrical outlet on unit. Set the selector switch to the AUTO position. The unit will start automatically when the subject tool is started.
The DC 2900 c Antistatic is delivered with the following hose set:
Antistatic hose set Ø 1.5”/38 mm x 15’/5m (Part No 2012+2108+2114)
The DC 2900c is delivered with the following:
- Suction hose (Ø 38) 5 m (Part No 2105)
- Aluminium floor tool B 370 Ø 1.5” /38mm (Part No 7235)
- Chrome steel suction pipe Ø 1.5”/38 mm (Part No 7257)
- intelli bag(Part No 42702, 10 pcs bags)
- Fine filter, cellulose (Part No 42029)
- HEPA filter (Part No 42027)
Technical Data
| HxWxD [mm] | 1110x445x570 |
|---|---|
| Weight [kg] | 16 |
| Inlet Ø [mm] | 50 |
| Hose length Ø38mm [m] | 5 |
| Collecting container [l] | 20 |
| Max. flow fan (UK) 115V [m3/h] | 215 |
| Max. flow fan (UK) 230V [m3/h] | 205 |
| Negative pressure max. (UK) [kPa] | 21 |
| Power (UK) 115V [W] | 1340 |
| Power (UK) 230V [W] | 1285 |
| (UK only) Auto: Power, connected tool/min. 200W: 115V, 10A [W] | 1340 |
| Auto: Power, connected tool/min. 200W: 230V, 10A [W] | 1285 |
| Auto: Power, connected tool/min. 200W: 230V, 16A [W] | 2200 |
| Fine filter polyester, area [m2] | 1.5 |
| Degree of separation fine filter, EN 60335-2-69, Class M [%] | 99.9 |
| HEPA filter, area [m2] | 0.85 |
| Filter classification HEPA filter, EN 1822-1 | HEPA H13 |
| Degree of separation machine, EN 60335-2-69, Appendix A-A, Class H [%] | 99.995 |
| Max. sound level [dB(A)] | 68 |
Documents
Accessories
Filters for DC 1800, DC 2800 & DC2900
Cleaning Accessories Ø38 mm/1.5”
Hose Sets
Plastic bags for: DC 2900H c, DCF 2800, DC 3900...
