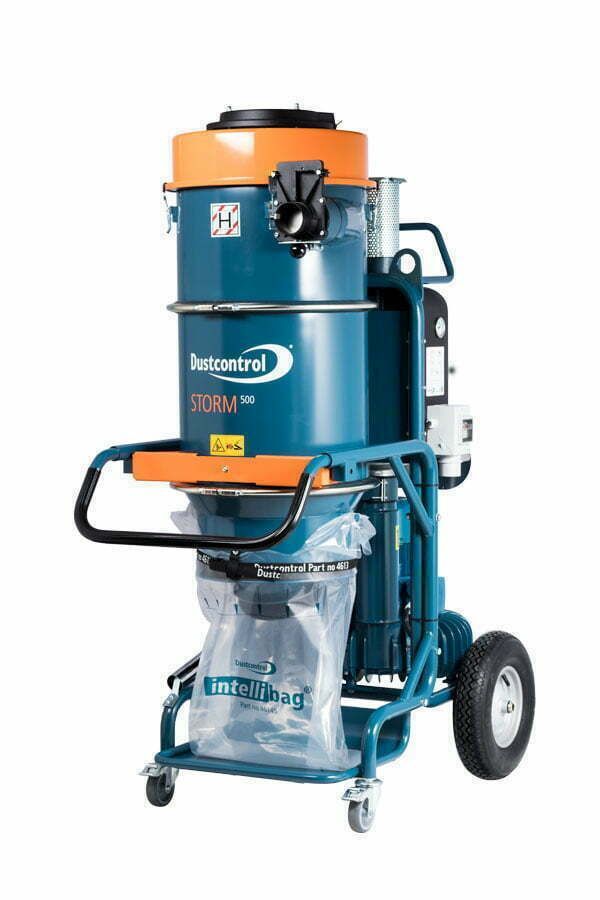

Dust Extraction (DC Storm 500C)
£9,087.00
In stock
Product Details
- The DC Storm 500 has a three-phase direct driven turbo pump that is suitable for continuous operation and heavy material transport, source extraction and cleaning.
- An efficient semi-automatic filter cleaning system
- For easier transportation it has handles both front and rear and the cyclone can be tilted
- For better ergonomic the handles are adjustable and the cyclone can be tilted for easier filter exchange
- Equipped with Intellibag (DC Storm 500c), container (DC Storm 500a) or Longopac (DC Storm 500L
- An efficient HEPA filter with a large filter area
Description
The standard DC Storm 500c is used for big hand held power tools and heavy duty cleaning on construction sites. The dust extractor is suitable for two smaller handheld power tools or one larger tool, such as a floor grinder, with a disk of up to 30”/750 mm. The DC Storm 500a and L are similar to the DC Storm 500c except that they are equipped with a steel container (a) or Longopac (L).
The DC Storm 500c is delivered as standard with the following:
- Coupling socket (2107)
- Coupling socket (2008)
- Suction hose antistatic (Ø50 mm /2”) 7.5 m/22 ft (2013)
- Floor nozzle B500 mm /W 19.7” (7238)
- Suction pipe (Ø50 mm /2”) (7265)
- 10 x plastic bags (46145)
- Fine filter, polyester (44212)
- HEPA H13 filter (42869)
Technical Data
| HxWxD [mm] | 1790x780x1160 |
|---|---|
| Weight [kg] | 178 |
| Inlet Ø [mm] | 76 |
| Hose length Ø50mm [m] | 7.5 |
| Collecting container [l] | 60 |
| Max. flow fan (EU) [m3/h] | 500 |
| Negative pressure max. (EU) [kPa] | 25 |
| Power [kW] | 4 |
| Fine filter polyester, area [m2] | 5 |
| Degree of separation fine filter, EN 60335-2-69, Class M [%] | 99.9 |
| HEPA filter, area [m2] | 2.7 |
| Filter classification HEPA filter, EN 1822-1 | HEPA H13 |
| Degree of separation machine, EN 60335-2-69, Appendix A-A, Class H [%] | 99.995 |
| Max. sound level [dB(A)] | 75 |
