Handles all kinds of fine dusts and materials created on construction sites as well as dust from many other industrial factory processes
Equipped with a patented self-cleaning filter (washable polyester) and a
H13-filter
Compact and robust – easy to move and transport
Signal lamp showing when it’s time to clean the filter
Puncture proof wheels of ”non marking-type”, lockable to enable the user to work on uneven ground
Portable but very powerful dust extractor suitable for large quantities of dust due to its integrated pre-separator.
Particularly suitable for concrete grinding since 80–90% of the coarse materials are separated in the pre-separator. The remaining dust goes into the filter cyclone.
Different discharge arrangements can be combined (intellibag (c), Longopac (L) and container (a): c+c/ c+L/ a+L/ a+a / L+L
Description

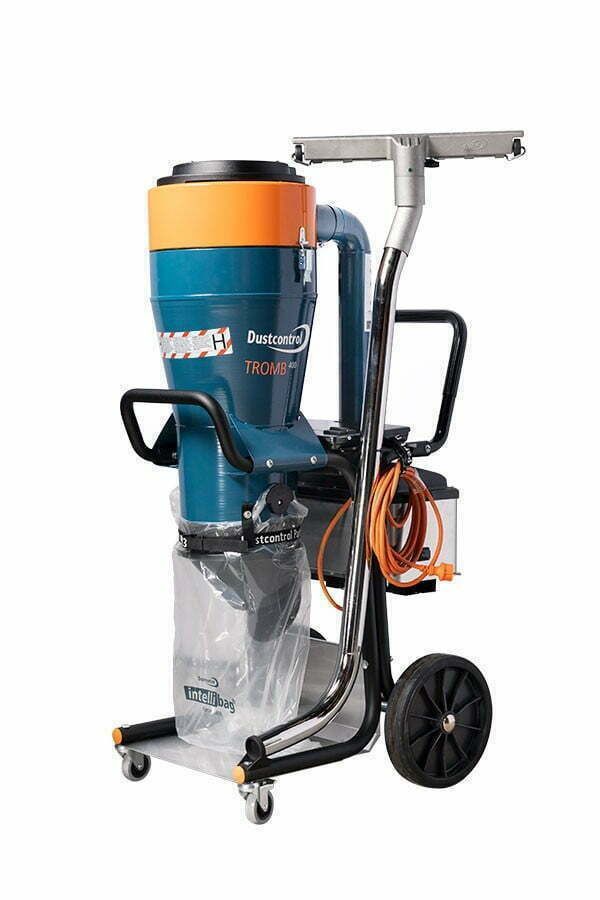

The DC Tromb 400H c is our most powerful 1-phase dust extractor up to now. It is designed to cope with both the demands for a clean and healthy working environment and handheld power tools which are more effective than ever. The dust extractor also enables the user to work without unneccessary interruptions – it tackles up to 400 m3/h. The DC Tromb is not just powerful, robust and effective but also versatile and all-round. It can handle all kinds of fine dusts and materials created on a construction site created from cutting concrete, sanding, grinding or drilling floors or walls as well as dust from many other industrial factory processes. The machine can be connected to floor grinders and handheld tools like cutting machines, chisel hammers and saws. Due to its compact design the DC Tromb is also easy to move and transport. As a standard the machine is equipped with a patented self-cleaning filter (washable polyester) and a H13-filter built to be Application Class H. A signal lamp shows when it’s time to clean the filter.*The DC Tromb 400H c delivery package includes:
5 m hose (Ø 50),
a chrome steel suction pipe and a strong aluminium floor tool
Intellibag plastic sacks, 10 pcs
puncture proof wheels of ”non marking-type” – can be locked to make it possible for the user to work on uneven ground.
* Switch operated reverse pulse filter cleaning
Technical Data
HxWxD [mm]
1415x600x1280
Weight [kg]
46
Inlet Ø [mm]
76
Hose length Ø50mm [m]
5
Collecting container [l]
20
Max. flow fan (UK) 115V [m3/h]
360
Max. flow fan (UK) 230V [m3/h]
360
Negative pressure max. (UK) [kPa]
21
Power (UK) 115V [W]
2100
Power (UK) 230V [W]
2680
Fine filter polyester, area [m2]
1.85
Degree of separation fine filter, EN 60335-2-69, Class M [%]
99.9
HEPA filter, area [m2]
2.2
Filter classification HEPA filter, EN 1822-1
HEPA H13
Degree of separation machine, EN 60335-2-69, Appendix A-A, Class H [%]
Plastic bags for: DC 2900H c, DCF 2800, DC 3900 Twin cc, DC 3900 Twin cL, DC 3900 Turbo c, DC 3900 Twin Turbo c, DC Tromb 400H c, DC Tromb H Turbo c VFD, DC Tromb Twin cc, DC Tromb Twin cL, DCF Tromb c
