Dust Extraction (DC TROMB C Turbo 2.2KW)
(173102) DC TROMB C Turbo 4HP 460v / 60Hz POA (Price on Request)
(173107) DC TROMB C Turbo 4HP 600v / 60Hz POA (Price on Request)
Description

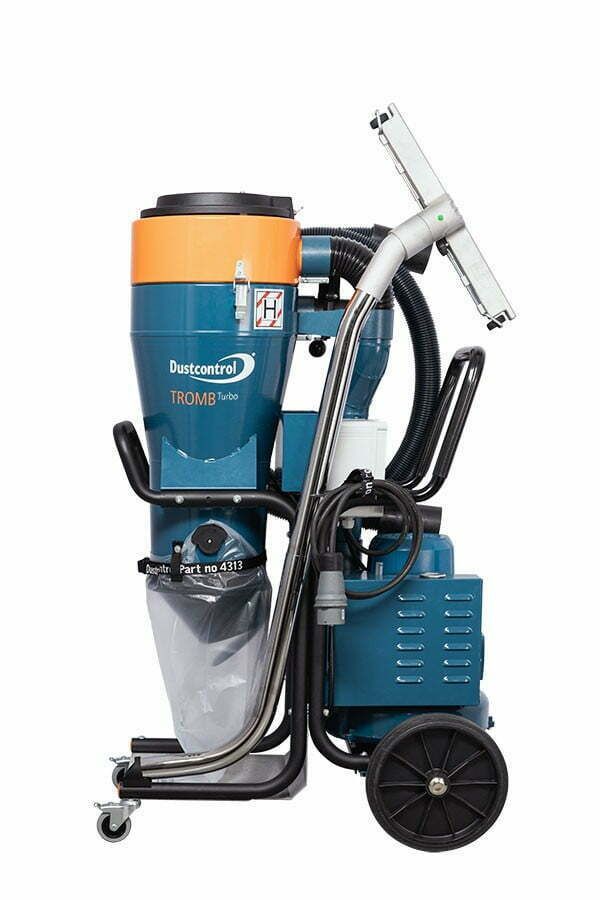

The DC Tromb Turbo c/L/a with direct start is a medium sized dust extractor that expands the Tromb family. Because it is equipped with a powerful three-phase motor it is suitable for longer hoses (up to 65’/20 m), heavy cleaning (1.5”/38 mm accessories) and for source extraction from medium sized power tools such as grinders, jack hammers, and saws. Thanks to the tall cyclone, large filters and powerful motor package, it can handle large amounts of debris.
The DC Turbo is delivered as standard with the following:
- Suction hose set, 7 m /23 ft, 5 m /16 ft (Ø50 mm /2”) and 2 m /6.5 ft (Ø38 mm /1.5”), (2126)
- Floor nozzle B450 mm (7236)
- Suction pipe (Ø50 mm /2”) (7257)
- Connecting sleeve (2114)
- Coupling socket (2107)
- Fine filter, polyester (44017)
- HEPA H13-filter (44016)
Technical Data
| HxWxD [mm] | 1415x600x840 |
|---|---|
| Weight [kg] | 84 |
| Inlet Ø [mm] | 76 |
| Hose length Ø38mm [m] | 2 |
| Hose length Ø50mm [m] | 5 |
| Collecting container [l] | 20 |
| Max. flow fan (EU) 230V [m3/h] | 260 |
| Negative pressure max. (EU) [kPa] | 28 |
| Power [kW] | 2.2 |
| Fine filter polyester, area [m2] | 2.5 |
| Degree of separation fine filter, EN 60335-2-69, Class M [%] | 99.9 |
| HEPA filter, area [m2] | 2.2 |
| Filter classification HEPA filter, EN 1822-1 | HEPA H13 |
| Degree of separation machine, EN 60335-2-69, Appendix A-A, Class H [%] | 99.995 |
| Max. sound level [dB(A)] | 72 |
