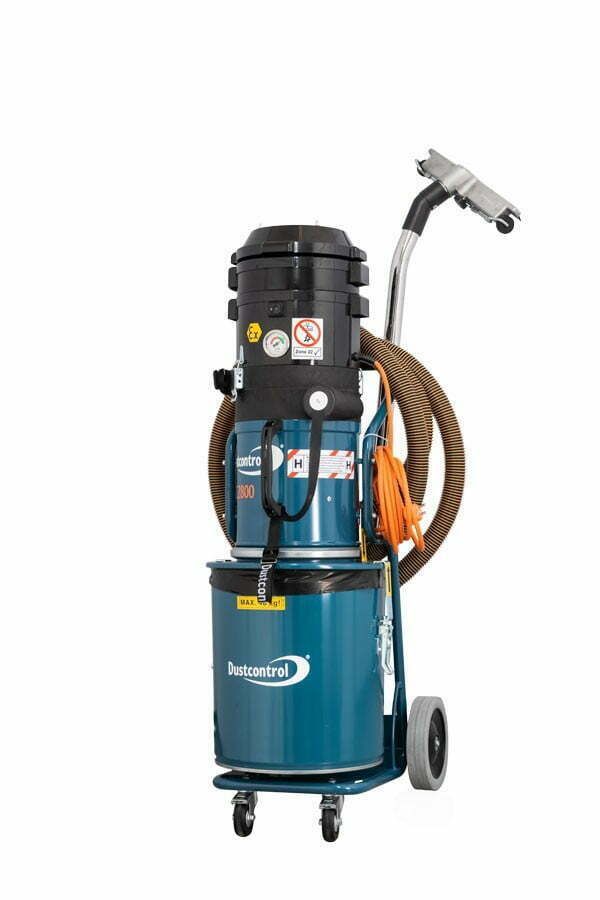

Dust Extraction (DC2800H EX)

The DC 1800 and 2800 H EX are suitable for general cleaning and source extraction. The DC 1800 H EX is small and lightweight and as such, suitable for those that need a highly portable machine that still is powerful enough for source extraction. The DC 1800 and 2800 H EX are equipped with a steel container. The machines are equipped with a brushless motor (for spark-free operation) and certified to IP54 standard (non conductive dust).

The EX-line is especially designed for industries where there is a risk of explosion and also high demands for clean production, such as the wood, food production and electronics industries. The machines fulfil the requirements of the ATEX Zone 22 directive 2014/34/EU. Cleaning accessories from Dustcontrol are also available to meet these regulations.

Zone 22 is an area where an explosive environment, created by combustible airborne substances, does not occur in normal operation or only occurs short-term. These machines are equipped with steel containers, earth-bonded parts and antistatic accessories.

The machines for non-conducting material are enclosed to IP54 standard. For conductive material, IP65 standard is required. The machines are virtually maintenance free and can extract dust in a vast range of applications such as source extraction when using power tools for grinding, cutting and drilling applications as well as general.

Supplied with (Part No) DC1800 / DC 2800 H EX:

• Suction hose ATEX, Ø38, 5 m/ 20 in. (2027)
• Floor nozzle (7235E)
• Suction pipe Ø38 mm/1.5” (7257)
• Fine filter, polyester (42028-01)
• HEPA H13 filter (42027)
